How to resolve issues in starting ANSYS AEDT ACT extensions and tool kits?

This posting provides different workarounds that can address issues in loading ANSYS AEDT ACT wizard and toolkits.

If the AEDT ACT extension is failing to launch, this can be related to different issues. Below is a list of workarounds:

1) Installation issue: Uninstall AEDT and re install with admin privilege , try turn off the firewall and antivirus while installing as an admin then you can turn them on after restarting the machine.

2) Run AEDT as an administrator after the install

3) Network issue: if a VPN is used, try to hard reboot the machine

4) Network issue: Open a CMD window and run “C:\Users\Admin>ipconfig/ release” then “C:\Users\Admin>ipconfig/renew” or as seen in the below screen shots.

5) Changing the name of the AnsysEM\AnsysEMx.x\Win64\common\ACT folder

6) Environment variable issue: Open a CMD window and run: echo %PATH%,

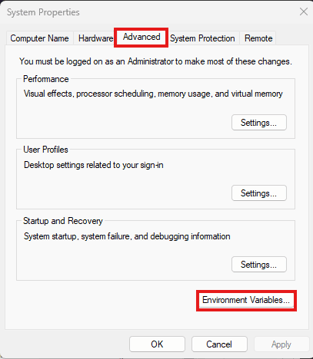

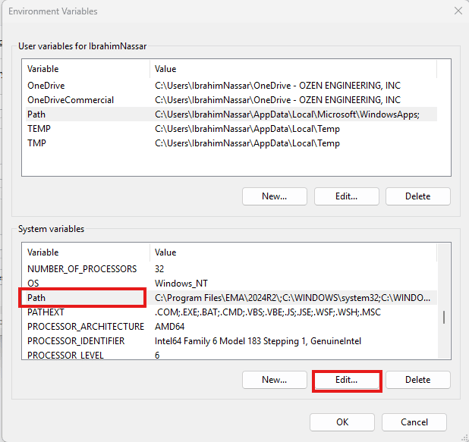

in the provided results, look for "C:\Program Files\PowerShell\7\". If it exists, user needs to edit the environment variable. To edit the environment variables, a) open System Properties, b) select Advanced tab, c) click on Environment Variables, d) edit the PATH environment variable and remove "C:\Program Files\PowerShell\7\"

Below are example of error messages that can be produced with this issue.

*Global - Messages

[error] ACT Wizard: ERROR: Could not load type 'System.Object' from assembly 'System.Private.CoreLib, Version=8.0.0.0, Culture=neutral, PublicKeyToken=7cec85d7bea7798e' because the parent does not exist. TypeLoadException at System.ModuleHandle.ResolveType(RuntimeModule module, Int32 typeToken, IntPtr* typeInstArgs, Int32 typeInstCount, IntPtr* methodInstArgs, Int32 methodInstCount, ObjectHandleOnStack type) at System.ModuleHandle.ResolveTypeHandleInternal(RuntimeModule module, Int32 typeToken, RuntimeTypeHandle[] typeInstantiationContext, RuntimeTypeHandle[] methodInstantiationContext) at System.Reflection.RuntimeModule.ResolveType(Int32 metadataToken, Type[] genericTypeArguments, Type[] genericMethodArguments) at System.Reflection.CustomAttribute.FilterCustomAttributeRecord(CustomAttributeRecord caRecord, MetadataImport scope, Assembly& lastAptcaOkAssembly, RuntimeModule decoratedModule, MetadataToken decoratedToken, RuntimeType attributeFilterType, Boolean mustBeInheritable, Object[] attributes, IList derivedAttributes, RuntimeType& attributeType, IRuntimeMethodInfo& ctor, Boolean& ctorHasParameters, Boolean& isVarArg) at System.Reflection.CustomAttribute.GetCustomAttributes(RuntimeModule decoratedModule, Int32 decoratedMetadataToken, Int32 pcaCount, RuntimeType attributeFilterType, Boolean mustBeInheritable, IList derivedAttributes, Boolean isDecoratedTargetSecurityTransparent) at System.Reflection.CustomAttribute.GetCustomAttributes(RuntimeAssembly assembly, RuntimeType caType) at System.Attribute.GetCustomAttributes(Assembly element, Type attributeType, Boolean inherit) at Microsoft.Scripting.Utils.ReflectionUtils.GetCustomAttributes[T](Assembly assembly, Boolean inherit) at IronPython.Runtime.Binding.PythonBinder.DomainManager_AssemblyLoaded(Object sender, AssemblyLoadedEventArgs e) at System.EventHandler`1.Invoke(Object sender, TEventArgs e) at Microsoft.Scripting.Runtime.ScriptDomainManager.LoadAssembly(Assembly assembly) at IronPython.Runtime.ClrModule.AddReference(CodeContext context, Object[] references) at Microsoft.Scripting.Interpreter.ActionCallInstruction`2.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run4[T0,T1,T2,T3,TRet](T0 arg0, T1 arg1, T2 arg2, T3 arg3) at System.Dynamic.UpdateDelegates.UpdateAndExecute3[T0,T1,T2,TRet](CallSite site, T0 arg0, T1 arg1, T2 arg2) at Microsoft.Scripting.Interpreter.DynamicInstruction`4.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run2[T0,T1,TRet](T0 arg0, T1 arg1) at IronPython.Compiler.PythonScriptCode.RunWorker(CodeContext ctx) at Ansys.ACT.Core.Extension.ReadScripts()

[error] ACT Wizard: ERROR: Could not load type 'System.Object' from assembly 'System.Private.CoreLib, Version=8.0.0.0, Culture=neutral, PublicKeyToken=7cec85d7bea7798e' because the parent does not exist. TypeLoadException at System.ModuleHandle.ResolveType(RuntimeModule module, Int32 typeToken, IntPtr* typeInstArgs, Int32 typeInstCount, IntPtr* methodInstArgs, Int32 methodInstCount, ObjectHandleOnStack type) at System.ModuleHandle.ResolveTypeHandleInternal(RuntimeModule module, Int32 typeToken, RuntimeTypeHandle[] typeInstantiationContext, RuntimeTypeHandle[] methodInstantiationContext) at System.Reflection.RuntimeModule.ResolveType(Int32 metadataToken, Type[] genericTypeArguments, Type[] genericMethodArguments) at System.Reflection.CustomAttribute.FilterCustomAttributeRecord(CustomAttributeRecord caRecord, MetadataImport scope, Assembly& lastAptcaOkAssembly, RuntimeModule decoratedModule, MetadataToken decoratedToken, RuntimeType attributeFilterType, Boolean mustBeInheritable, Object[] attributes, IList derivedAttributes, RuntimeType& attributeType, IRuntimeMethodInfo& ctor, Boolean& ctorHasParameters, Boolean& isVarArg) at System.Reflection.CustomAttribute.GetCustomAttributes(RuntimeModule decoratedModule, Int32 decoratedMetadataToken, Int32 pcaCount, RuntimeType attributeFilterType, Boolean mustBeInheritable, IList derivedAttributes, Boolean isDecoratedTargetSecurityTransparent) at System.Reflection.CustomAttribute.GetCustomAttributes(RuntimeAssembly assembly, RuntimeType caType) at System.Attribute.GetCustomAttributes(Assembly element, Type attributeType, Boolean inherit) at Microsoft.Scripting.Utils.ReflectionUtils.GetCustomAttributes[T](Assembly assembly, Boolean inherit) at IronPython.Runtime.Binding.PythonBinder.DomainManager_AssemblyLoaded(Object sender, AssemblyLoadedEventArgs e) at System.EventHandler`1.Invoke(Object sender, TEventArgs e) at Microsoft.Scripting.Runtime.ScriptDomainManager.LoadAssembly(Assembly assembly) at IronPython.Runtime.ClrModule.AddReference(CodeContext context, Object[] references) at Microsoft.Scripting.Interpreter.ActionCallInstruction`2.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run4[T0,T1,T2,T3,TRet](T0 arg0, T1 arg1, T2 arg2, T3 arg3) at IronPython.Compiler.Ast.CallExpression.Invoke1Instruction.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run1[T0,TRet](T0 arg0) at IronPython.Compiler.RuntimeScriptCode.InvokeTarget(Scope scope) at IronPython.Runtime.PythonContext.InitializeModule(String fileName, ModuleContext moduleContext, ScriptCode scriptCode, ModuleOptions options) at IronPython.Runtime.Importer.LoadModuleFromSource(CodeContext context, String name, String path) at IronPython.Runtime.Importer.LoadFromDisk(CodeContext context, String name, String fullName, String str) at IronPython.Runtime.Importer.ImportFromPathHook(CodeContext context, String name, String fullName, List path, Func`5 defaultLoader) at IronPython.Runtime.Importer.ImportFromPath(CodeContext context, String name, String fullName, List path) at IronPython.Runtime.Importer.ImportTopAbsolute(CodeContext context, String name) at IronPython.Runtime.Importer.ImportModule(CodeContext context, Object globals, String modName, Boolean bottom, Int32 level) at IronPython.Modules.Builtin.__import__(CodeContext context, String name, Object globals, Object locals, Object fromlist, Int32 level) at IronPython.Runtime.Importer.ImportLightThrow(CodeContext context, String fullName, PythonTuple from, Int32 level) at Microsoft.Scripting.Interpreter.FuncCallInstruction`5.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run2[T0,T1,TRet](T0 arg0, T1 arg1) at IronPython.Compiler.PythonScriptCode.RunWorker(CodeContext ctx) at Ansys.ACT.Core.Extension.ReadScripts()

[error] ACT Wizard: ERROR: No module named Forms ImportException at IronPython.Runtime.Importer.ImportModuleFrom(CodeContext context, Object from, String name) at IronPython.Runtime.Importer.ImportModule(CodeContext context, Object globals, String modName, Boolean bottom, Int32 level) at IronPython.Modules.Builtin.__import__(CodeContext context, String name, Object globals, Object locals, Object fromlist, Int32 level) at IronPython.Runtime.Importer.ImportLightThrow(CodeContext context, String fullName, PythonTuple from, Int32 level) at Microsoft.Scripting.Interpreter.FuncCallInstruction`4.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run1[T0,TRet](T0 arg0) at IronPython.Compiler.RuntimeScriptCode.InvokeTarget(Scope scope) at IronPython.Runtime.PythonContext.InitializeModule(String fileName, ModuleContext moduleContext, ScriptCode scriptCode, ModuleOptions options) at IronPython.Runtime.Importer.LoadModuleFromSource(CodeContext context, String name, String path) at IronPython.Runtime.Importer.LoadFromDisk(CodeContext context, String name, String fullName, String str) at IronPython.Runtime.Importer.ImportFromPathHook(CodeContext context, String name, String fullName, List path, Func`5 defaultLoader) at IronPython.Runtime.Importer.ImportFromPath(CodeContext context, String name, String fullName, List path) at IronPython.Runtime.Importer.ImportNestedModule(CodeContext context, PythonModule module, String name, List path) at IronPython.Runtime.Importer.ImportModuleFrom(CodeContext context, Object from, String name) at IronPython.Runtime.Importer.ImportModule(CodeContext context, Object globals, String modName, Boolean bottom, Int32 level) at IronPython.Modules.Builtin.__import__(CodeContext context, String name, Object globals, Object locals, Object fromlist, Int32 level) at IronPython.Runtime.Importer.ImportLightThrow(CodeContext context, String fullName, PythonTuple from, Int32 level) at Microsoft.Scripting.Interpreter.FuncCallInstruction`5.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.Interpreter.Run(InterpretedFrame frame) at Microsoft.Scripting.Interpreter.LightLambda.Run2[T0,T1,TRet](T0 arg0, T1 arg1) at IronPython.Compiler.PythonScriptCode.RunWorker(CodeContext ctx) at Ansys.ACT.Core.Extension.ReadScripts()

[info] GRPC server running on port: 50051.

[error] ACT Wizard: ERROR: Unable to find callback method 'onrefresh', named 'OnRefresh', in python file.

[error] ACT Wizard: ERROR: Unable to find callback method 'onreset', named 'OnChange', in python file.

[error] ACT Wizard: ERROR: Unable to find callback method 'onupdate', named 'OnNext', in python file.

[error] ACT Wizard: ERROR: Unable to find callback method 'isvalid', named 'ValidateParams', in python file.

[error] ACT Wizard: ERROR: Unable to find callback method 'oninit', named 'OnInit', in python file.
