Overlapping Text in Ansys Mechanical

Some users have reported this issue in 2024R2

.

Solution

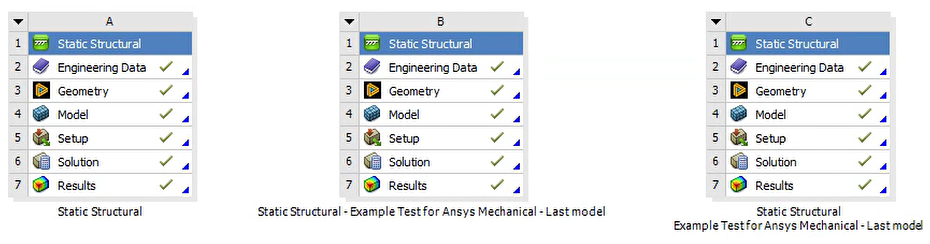

For this demonstration, we have three Static Structural Modules with the same setup. Note the differences on each name:

Module A:  Short name, 1 line

Module B:  Large name, 1 line

Module C:  Large name, 2 lines

.

When opening each module, the issue is only observed on Module C:

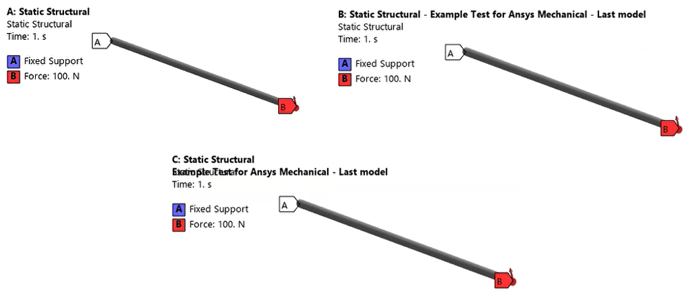

> On the Boundary Conditions

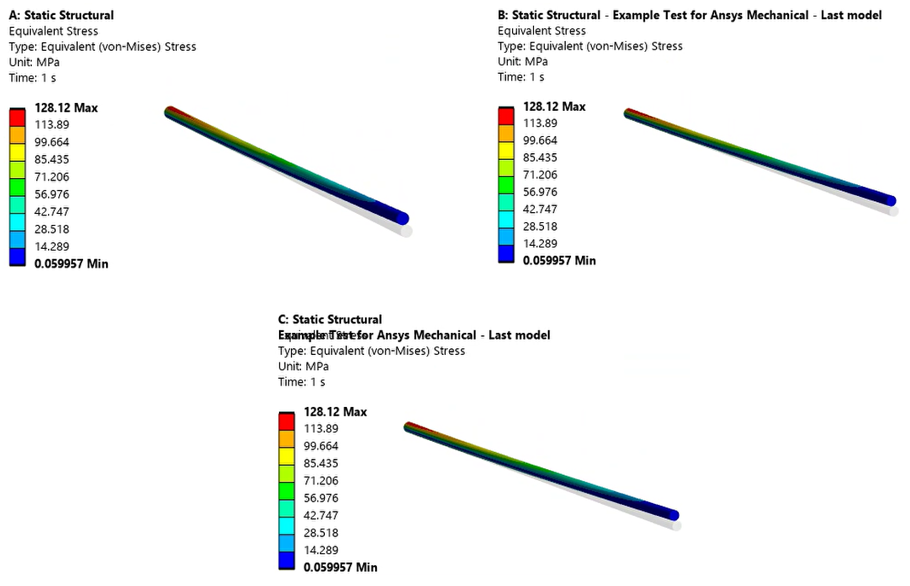

> On the results as well

.

Then, the recommendation is to use names as in Module A and B. This issue only happens with two-line names, and it will be fixed in the next release.
