Resolving Intersection Between a 3D Component and Another Object Without Boolean Operations

There is a solution for resolving the intersection between a 3D component and another object without using Boolean operations.

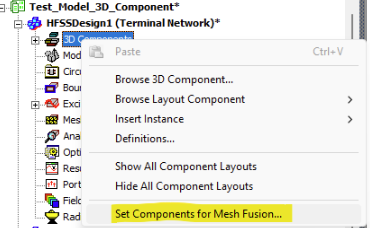

1- After importing your 3D component, right-click on 3D components and select Set Components for Mesh Fusion.

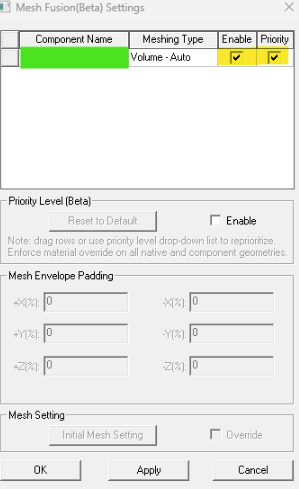

2- In the Mesh Fusion Settings window, check both the Enable and Priority boxes, then click OK.

This approach will eliminate the need for subtractions, and the validation check should pass successfully.
