      Port impedance for terminal port

      How to display the port impedance of a terminal port in HFSS

      First step, do not renormalize the port:

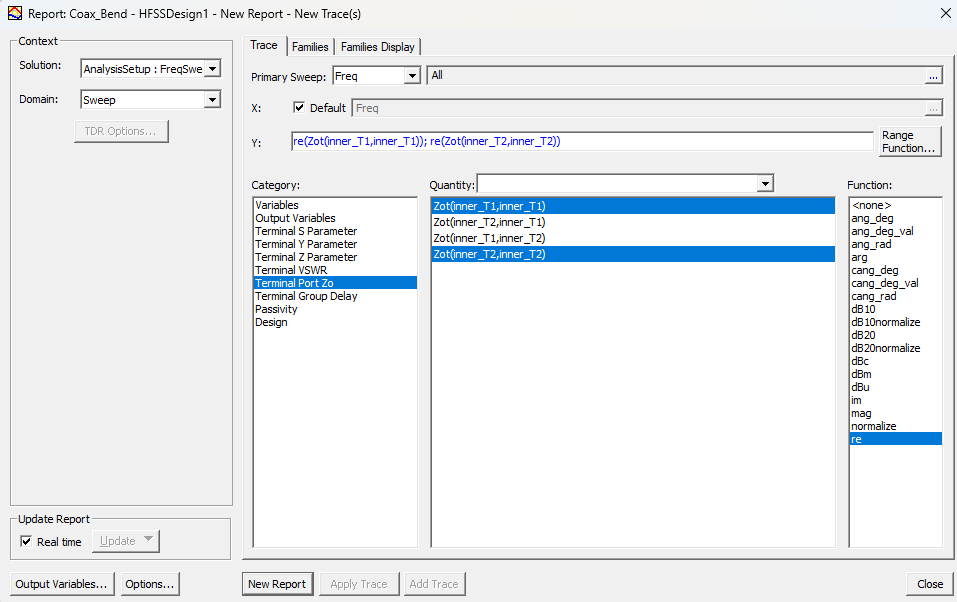

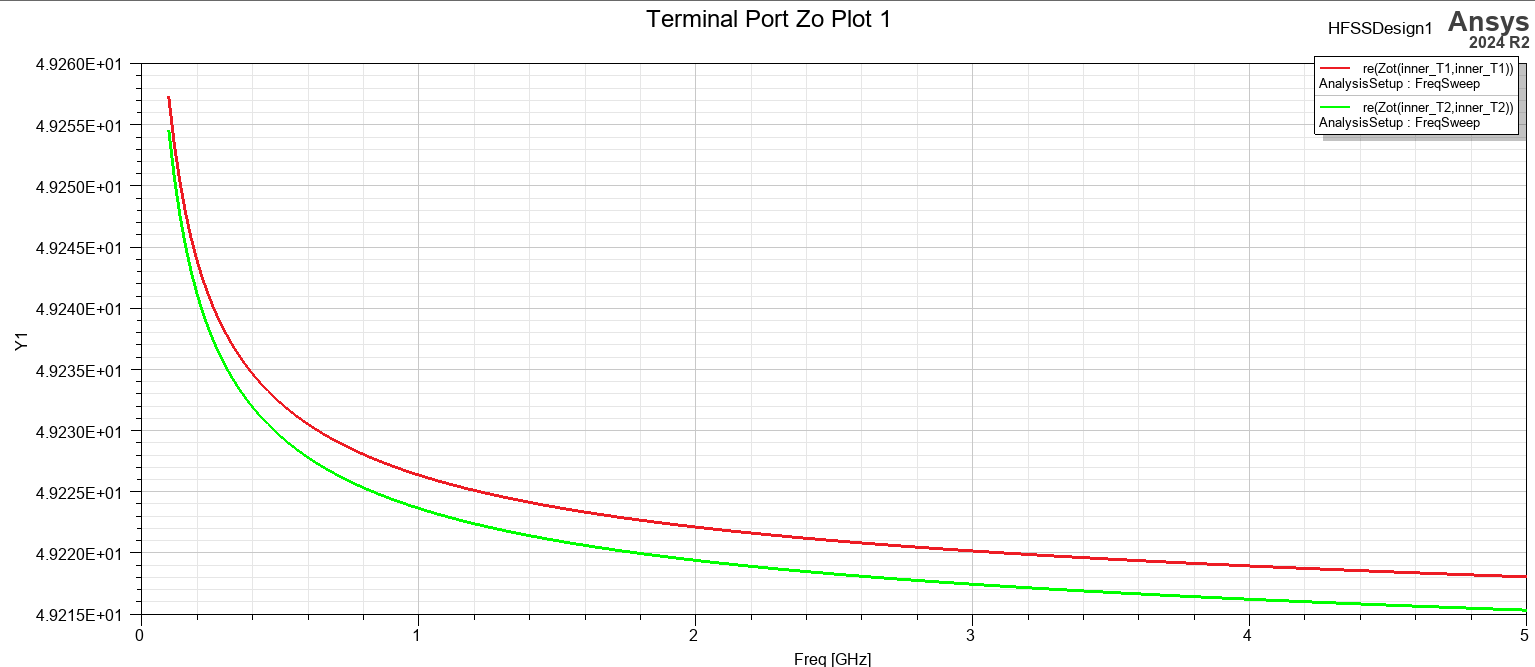

      Step 2: Plot Zo:
