      Installing Microsoft MPI for Use in Ansys Electronics Desktop


      To set up MS MPI for distributed simulations in AEDT:


      1.   Install MS MPI from the ANSYS Electromagnetics Installation Shell:

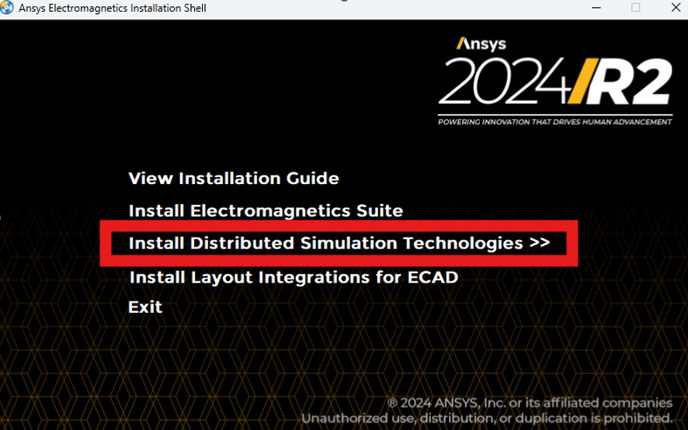

          • Install Distributed Simulation Technologies

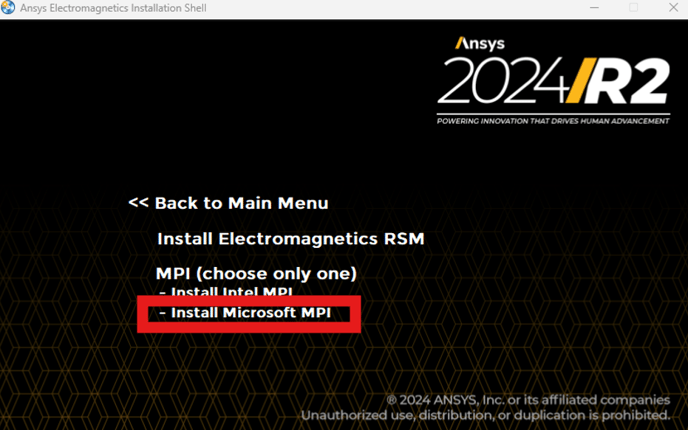

          • Install Microsoft MPI




      2.   Start the MS-MPI service by opening an elevated CMD (right-click on CMD and select "Run as administrator") and run these three commands:


      sc config MsMpiLaunchSvc depend= Dnscache/Dhcp


      sc config MsMpiLaunchSvc start= delayed-auto


      sc start MsMpiLaunchSvc

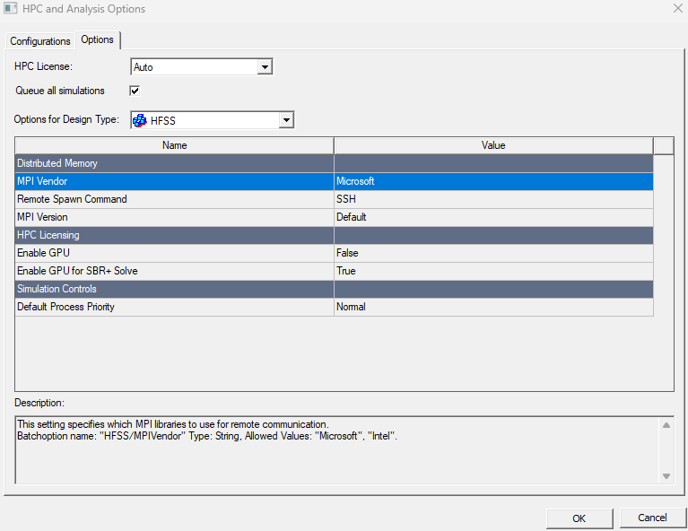

      3.   Set the MPI type in AEDT to MS-MPI in "HPC and Analysis Options" > "Options"
