How to upload EBD files in SIwave and HFSS
If the IBIS model came in an EBD format, how to upload it?

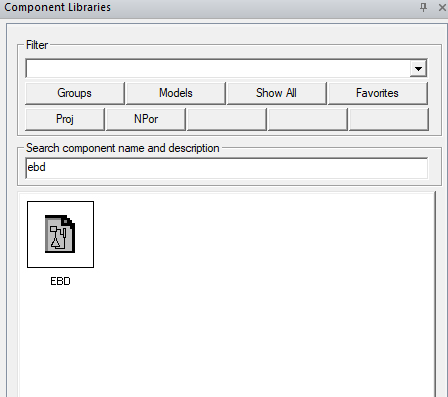

In Circuit, in the component library type EBD and select "Show All". Select the EBD icon.

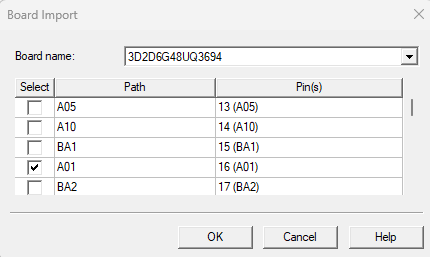

Then select the file, select the board name if there are more than one board, then select the path(s)

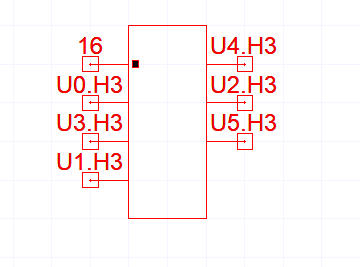

Press OK
