How to turn run an LS-DYNA model with nodal velocities and accelerations eliminated from the database

Compress LS-DYNA database by removing nodal velocities and accelerations

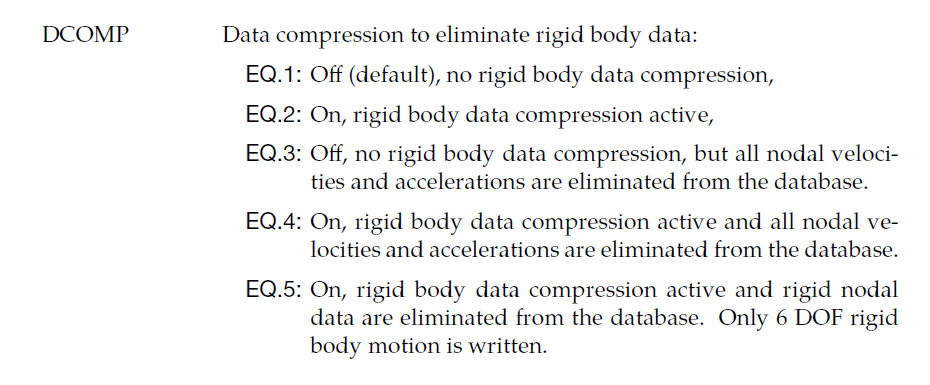

In *DATABASE_BINARY_EXTENT one can set the DCOMP flag to 3 or 4 according to the following excerpt from the LS-DYNA R14 Manual I:
