How to Archive an HFSS Model with Results

Archiving files in HFSS helps save and restore simulation projects efficiently, with the option to include the entire results directory. To archive a project, follow these steps:

1. Click File > Archive or select the Desktop tab of the ribbon and click Save Archive.

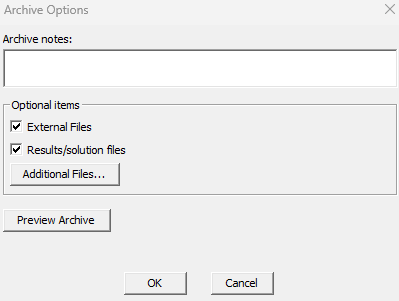

2. In the Archive Options dialog box, check the box for Results/Solutions files to include the results, and then click OK.





3. Select a directory and click Save to create a zipped AEDT file.

This process ensures that the entire project, including the results, is saved for future access.
