How to Resolve Missing SpaceClaim in Workbench 2025 R1

SpaceClaim is no longer installed by default with the Structures package. It must now be installed separately and configured.

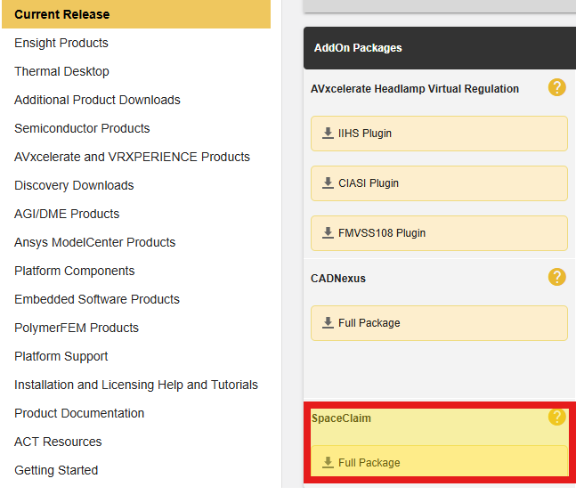

To install SpaceClaim, go to the Ansys Customer Portal and, under the Add-On Packages section, download and install the SpaceClaim full package.

https://download.ansys.com/currentReleases

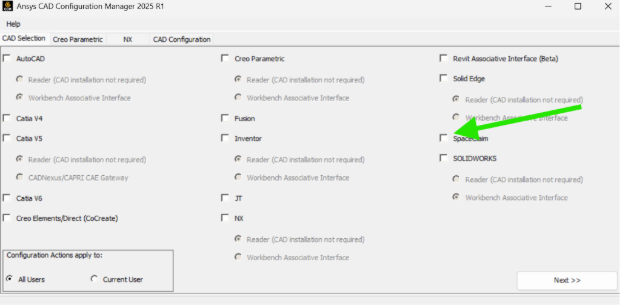

Once installed, close any open Ansys applications and run Ansys CAD Configuration Manager 2025 R1 as Administrator.

Under the CAD Selection tab, check SpaceClaim, then click Next, and then Exit.
