How to enable group delay calculations in Circuit?

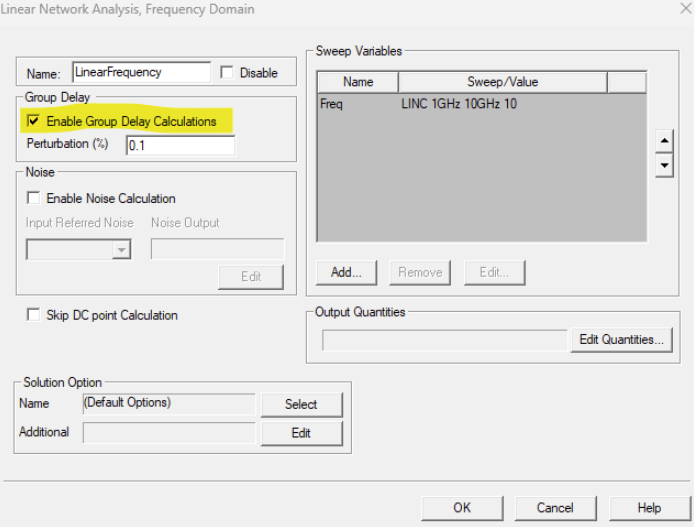

To be able to plot the group delay in Circuit, check the "Enable Group Delay Calculations" option in the Linear Network Analysis window, as shown below:
The group delay can be plotted after solving the model.
