How to define a contact resistance between parts in Maxwell?
How to set up a resistance boundary condition between conductive parts in Maxwell. It is used to capture conduction effects and current density with more accuracy when two parts are making contact and their connection is not perfect.

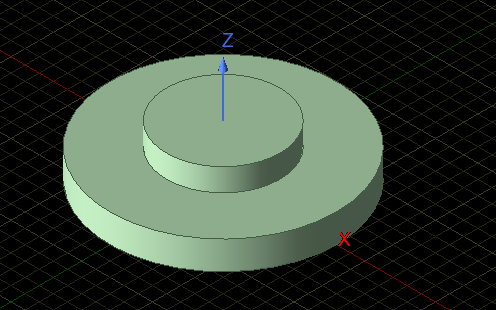

Identify the parts in contact:

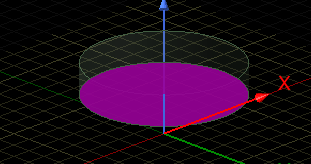

Select one of the surfaces where the conduction is happening:

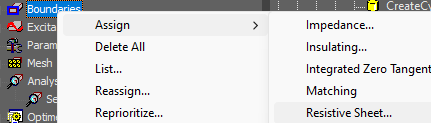

Define a Resistive Sheet boundary condition to that surface.

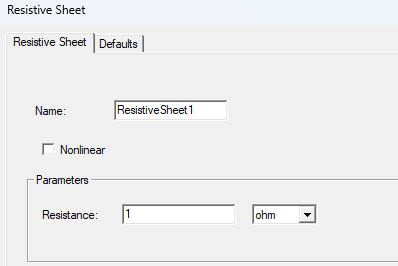

Define the properties of the resistive sheet:
