How to create waveports on an encrypted coax in an HFSS Terminal solution

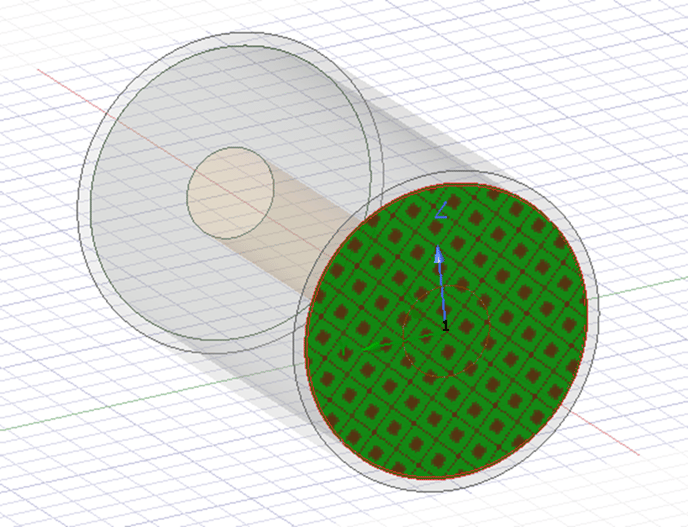

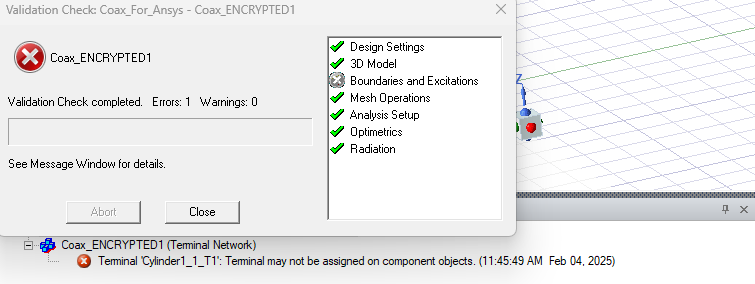

Terminals cannot be assigned on component objects, so creating the waveports as shown below will result in an error:

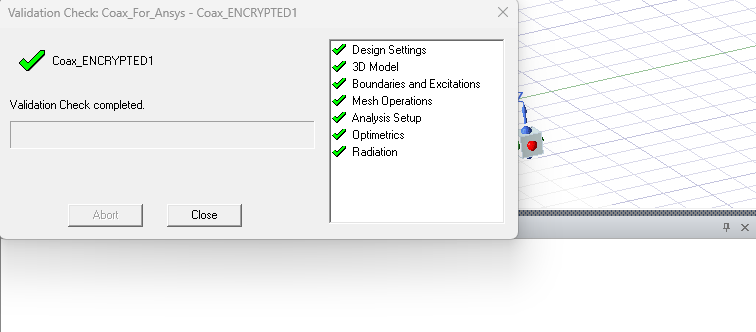

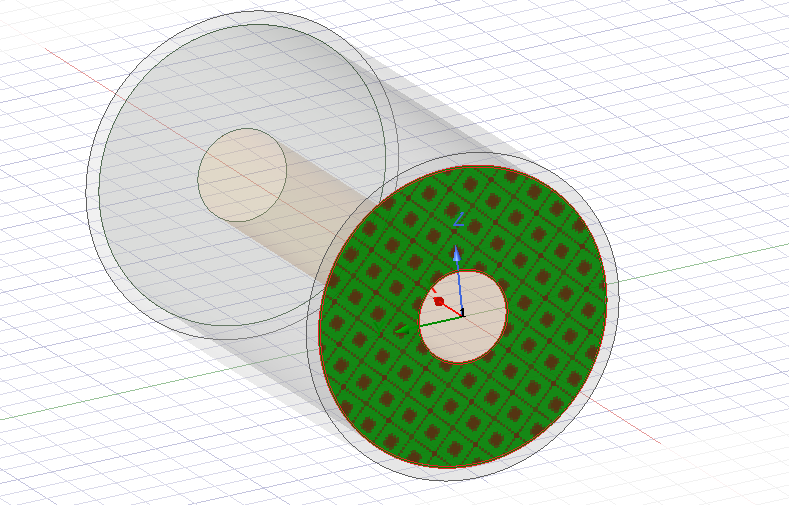

To resolve this issue, the terminal waveports on the encrypted coax should be created as shown below, with the section where the port and the pin intersect removed:
