How to change model units in Ansys Electronics Desktop (AEDT)?

To change model units in AEDT:

1. Go to the Modeler tab on the ribbon.

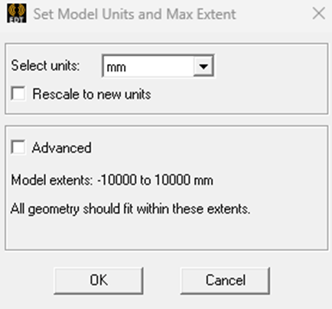

2. Click on Units to open the units settings.
3. Select the desired unit system (e.g., millimeters, inches).
4. Choose how the unit change will affect your model:

   1. Select the Rescale to new units option to rescale the dimensions to the new units.

      For example, selecting centimeters (cm) as the new unit of measurement results in

      a dimension of 10 millimeters (mm) becoming 10 cm.

   2. Clear the Rescale to new units option (the default) to convert the dimensions to

      the new units without changing their scale. For example, selecting cm as the new

      unit of measurement results in a dimension of 10 mm becoming 1 cm.
