How can I read RST Files?

RST files can be used to import results

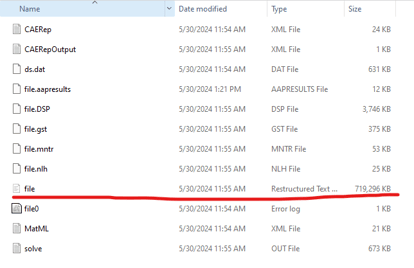

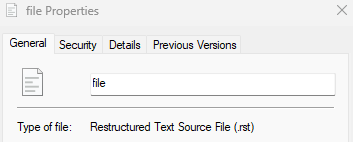

In some cases, you may have a solved model but are unable to read the results due to a bug or file corruption. In the solver directory, you can find a file called file.rst. It may also appear as a restructured text source. We can read this file and import the result data to an unsolved model.

Here are the steps to do this:

1. Backup the rst model from the solved analysis.

2. Create a duplicate of the analysis block with an issue.

3. In the duplicate analysis block, click on the solutions, and navigate to the solution tab in the top bar.

4. Use the option: Read result files by copy. This will create a copy of the result files in the solver directory, and will read the results from there.

5. The solution block should appear with a green checkmark, and the results can be extracted.
