How can I automatically name nets in Ansys Simplorer to remove net-name warnings?

When working in Ansys Simplorer (Twin Builder), you may see net-name warnings such as “Net name changed automatically.” These messages appear when wires are labelled with invalid or duplicate names (for example, starting with a number).

If you receive net-name warnings in Simplorer, follow the steps below to automatically assign proper names:

1. Select the entire circuit

• Press Ctrl + A on your keyboard to highlight all components and wires.

• This ensures every connection in your schematic is included for renaming.

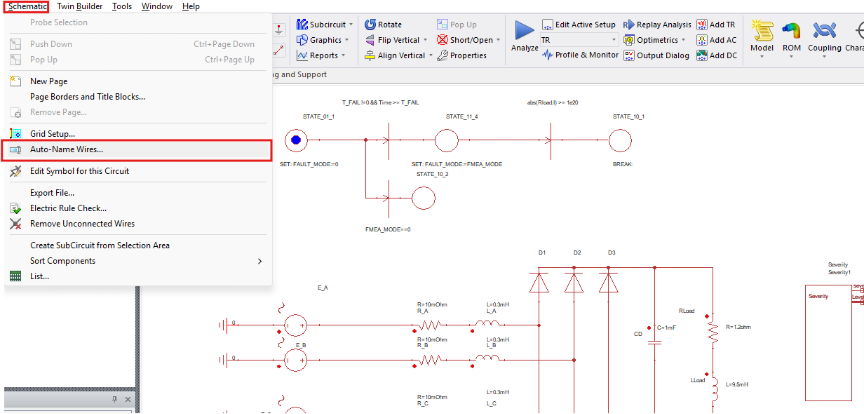

• From the top-left menu, choose Schematic → Auto-Name Wires…

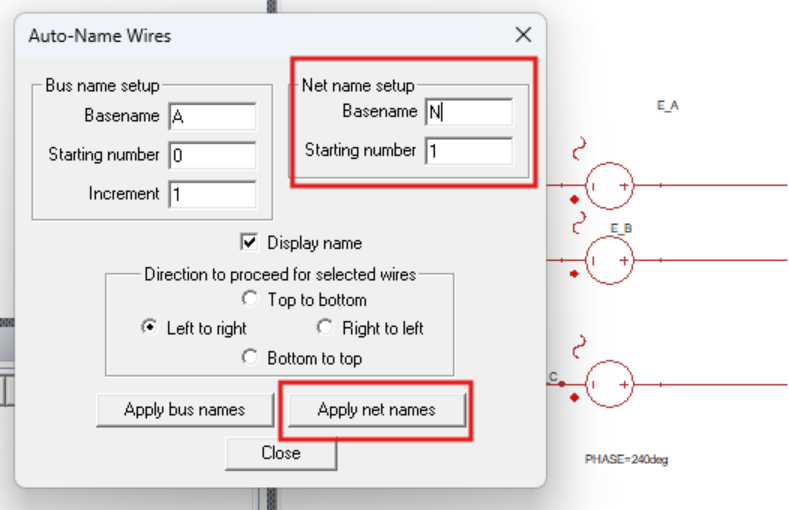

• The Auto-Name Wires dialog will appear.

• Choose a Base Name, for example N.

• Set a Starting Number, typically 1.

• These options will generate net names such as N1, N2, N3 …

• Click Apply Net Names to assign names to all selected wires.

• Check that each wire now has a valid name beginning with a letter.

• The warnings should no longer appear.

Notes and Tips

• These warnings do not affect simulation results — they exist only to enforce proper naming conventions.

• If you prefer custom prefixes (for example, “PH” for phase nets or “V” for voltage lines), you can replace the base name accordingly.

• Saving the model after renaming helps keep the updated net list consistent across future exports or coupled simulations.
