Cropping a design in the IC mode of HFSS 3D Layout

You can filter nets and/or clip a design using a polygon. If cropping leaves behind unwanted fragments, adjust the relevant parameter in the Geometry Simplification Settings window.

To crop a design in IC mode:

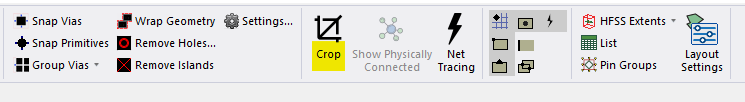

1. From the Layout ribbon, click Crop.



2. If needed, navigate to the Layout Editor tab and locate the desired components.

3. Click within the Layout Editor to begin selecting the region you want to preserve. Move the cursor to enclose the area.

4. Press Enter or right-click and select Finish.

All elements outside the selected region will be removed from the design.
