Add R, L, C or S-parameters to 3D Layout

How to add a new component to a 3D Layout model

• Display the layer where you want to put the component (Top or Bottom)
• Right-click, Boundary>Create Circuit Element
• Select two points in the model
• Press O to switch to select objects

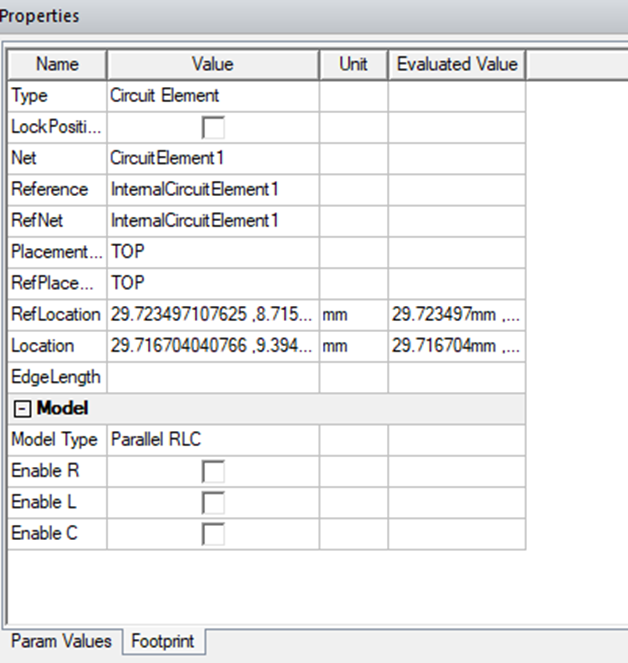

• Select the new component > to display the properties
• In the properties panel, select Footprint or the EM design panel
• Enter the values
•
