      2-way coupling HFSS/3DLayout/Q3D to Icepak

      How to create a 2-way coupling between HFSS/3D Layout and Q3D (AC only) and icepack.

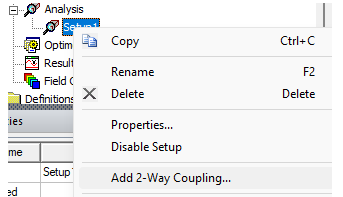

      In the icepak model, right click on the setup, and select 2-Way coupling

      Enter the number of iterations, let us say 5, and the Max Icepak iterations per coupling to be 20.

      Picture42-1

      Now the 2-Way coupling is added to the setup.
